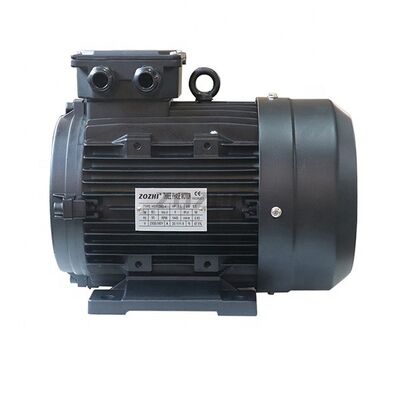

Rated Speed 1400rpm Hollow Shaft Motor 32 Kg Depend On Customer Specifications Suitable For Conveyor Systems And Robotics

  • Rated Speed 1400rpm Hollow Shaft Motor 32 Kg Depend On Customer Specifications Suitable For Conveyor Systems And Robotics
Nazwa handlowa ZOZHI
Orzecznictwo CE
Model Number HS112M2-4
Minimum Order Quantity 1
Cena USD165
Packaging Details CTNS/VENEER CASE
Delivery Time 7 DAYS
Payment Terms 100% Before Shipment
Supply Ability 10000
Szczegóły Produktu
Shaft 24mm Frame Size 112#
Application High Pressure Pump Housing Die Cast Aluminum
Hollow Shaft Diameter Φ24mm Motor Type AC Motor
Weight 32 Kg Diameter 42 Mm
Podkreślić

1400rpm hollow shaft motor

,

32 kg hollow shaft motor

,

hollow shaft motor for conveyor systems
Zostaw wiadomość
opis produktu
Hollow Shaft Motor Overview
The Hollow Shaft Motor is a specialized AC motor engineered for exceptional performance and versatility in industrial applications. With a speed range of 1400-1500 RPM and power rating of 5.5KW (7.5HP), this motor delivers reliable operation in demanding environments. The Φ24mm hollow shaft design enables direct integration into machinery requiring hollow rotating shafts, making it ideal for conveyor systems, packaging machines, and automation equipment.
Key Specifications
Model Number HS112M2-4
Brand ZOZHI
Rated Speed 1400 RPM
Speed Range 1400-1500 RPM
Power Rating 5.5KW / 7.5HP
Hollow Shaft Diameter Φ24mm
Efficiency 85%
Insulation Class Class F
Motor Type Single Phase AC Motor
Certification CE Certified
Country of Origin China
Design Advantages
  • Compact hollow shaft design saves space in mechanical assemblies
  • Allows passage of cables, pipes, or components through motor center
  • Reduces mechanical complexity by eliminating additional coupling components
  • Robust construction ensures long service life and resistance to operational stresses
  • Effective cooling mechanisms prevent overheating during continuous operation
  • Easy installation and minimal maintenance requirements
Efficiency Options
Available in different efficiency classes including hollow shaft IE3 motor (premium efficiency) and hollow shaft IE1 motors (cost-effective solution). The IE3 version complies with latest international energy efficiency regulations, reducing operating costs and environmental impact.
Primary Applications
  • High-pressure pump systems
  • Conveyor systems and automation equipment
  • Packaging machinery
  • Fans and blowers
  • Robotics and precision machinery
  • Locations requiring single-phase operation
Pricing & Availability
Price: USD 165 per unit | Minimum Order Quantity: 1 unit | Supply Ability: 10,000 units | Delivery Time: 7 days
Packaging & Shipping
Each motor is securely packaged in anti-static bags with custom foam inserts, placed in sturdy cardboard boxes with clear labeling. Bulk orders use reinforced cartons with additional padding. Worldwide shipping via tracked and insured carriers with tracking numbers provided upon dispatch.
Frequently Asked Questions
What is the brand and model number of this Hollow Shaft Motor?
The brand is ZOZHI and the model number is HS112M2-4.
Where is the Hollow Shaft Motor manufactured?
This motor is made in China.
What certifications does this product have?
The Hollow Shaft Motor is CE certified.
What is the minimum order quantity and price per unit?
The minimum order quantity is 1 unit, and the price is USD 165 per unit.
How is the product packaged and what is the delivery time?
The motor is packaged in cartons or veneer cases, and the delivery time is typically 7 days.
What are the payment terms and supply ability for this product?
Payment terms are 100% before shipment, and the supply ability is 10,000 units.
